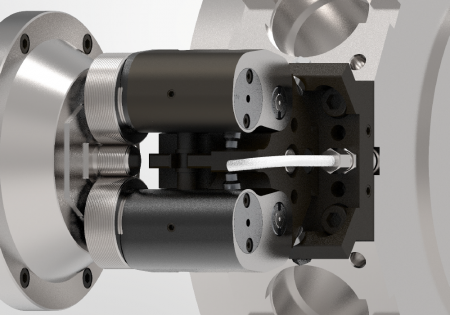

Tangential rolling system B13-VB
Efficiency leap in fitting production
The switch from conventional thread cutting to the high-performance B13-VB tangential roll system has resulted in a significant optimization of thread production for M20×1.5 reducer fittings. The machining time per component has been drastically reduced, while process reliability and quality have been increased.
TASK
Reduction of machining time
- Application: Reducing nozzle/ M20×1,5
- Material: 1.4305 (tensile strength 750 N/mm2)
- Lot size: 250,000 pieces per year
Current process:
- Thread pre-cut and finish-cut
- Machining time per part approx. 15 seconds
Solution
- Process changeover to thread rolling with tangential rolling system B13-VB
Customer Benefit
Reduction of machining time:

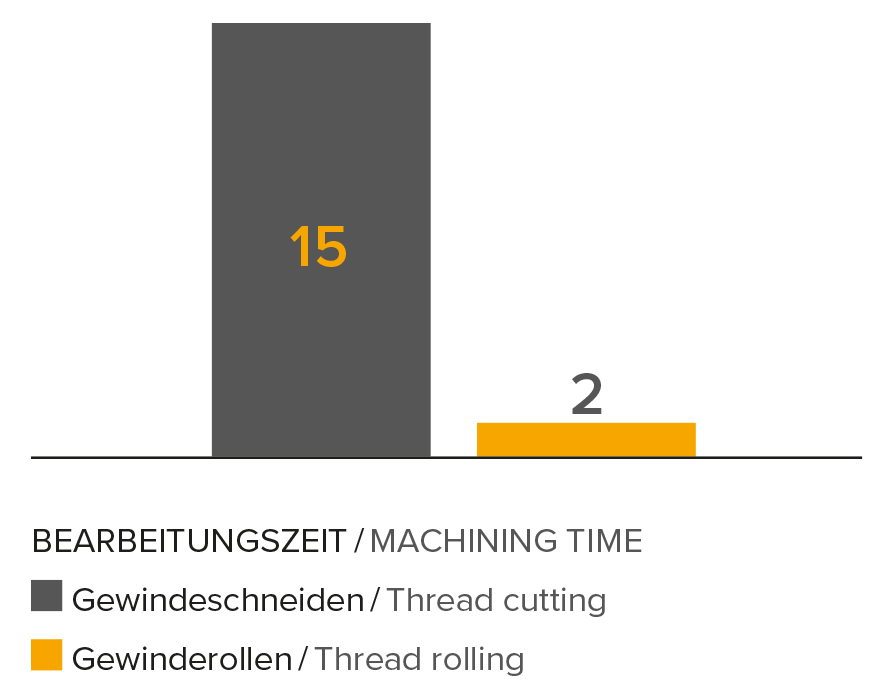

- By changing the process from thread cutting to thread rolling, the machining time for thread production could be reduced from originally 15 seconds to 2 seconds!
Process:
- Greater process reliability is ensured with a pitch accuracy of ±2 µm
- Front mounted rolls make it possible to roll threads directly up to a collar or chuck
- No additional processing after the rolling process necessary

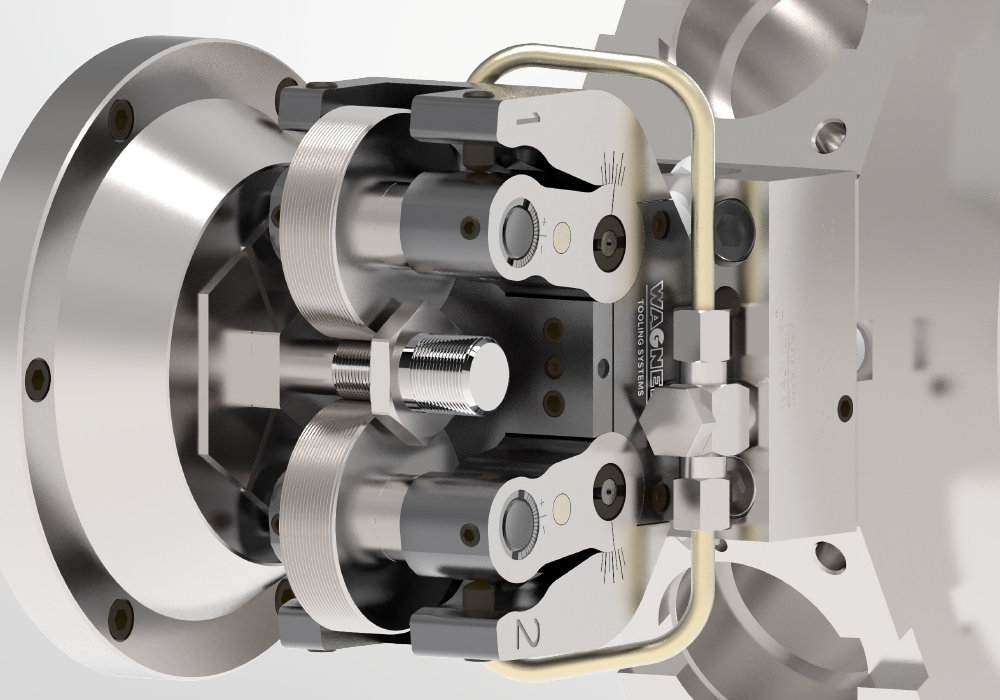

Tangential rolling system B16F
Productivity without compromise – thread rolling behind a collar
In the manufacture of M16×1.5 reduction adapters, thread rolling behind a collar placed particularly high demands on process reliability and precision. The use of the B16F tangential rolling system completely replaced the previous pre-cutting and finishing processes. The result: drastically reduced machining times, maximum thread quality, and a robust process.
Task
Reduction of machining time
- Application:
Reducing nozzle / M16×1.5
Machining behind a collar - Material: 1.4305 (tensile strength 750 N/mm2)
- Lotsize: 250,000 pieces per year
Current process:
- Thread pre-cut and finish-cut
- Machining time per part approx. 12 seconds
Solution
- Process changeover to thread rolls with tangential rolling system B16F
Customer Benefit
Reduction of machining time:
- Due to the process changeover to the tangential rolling system B16F, the machining time for thread production is reduced from originally 12 seconds to 2 seconds!
Process:
- The time-consuming pre- and finish-cutting is replaced by a rolling process
- No additional deburring necessary after the forming process
Quality:
- Highest thread quality (press polished thread flanks) and dimensional accuracy
