Technical data
| Weight of tool with rolls | 3.7 kg |
| Weight of adapter | approx. 2.0 kg |
| Max. feed force | 5700 N |
| Working range Ø Standard thread | 0.24"–0.866" |

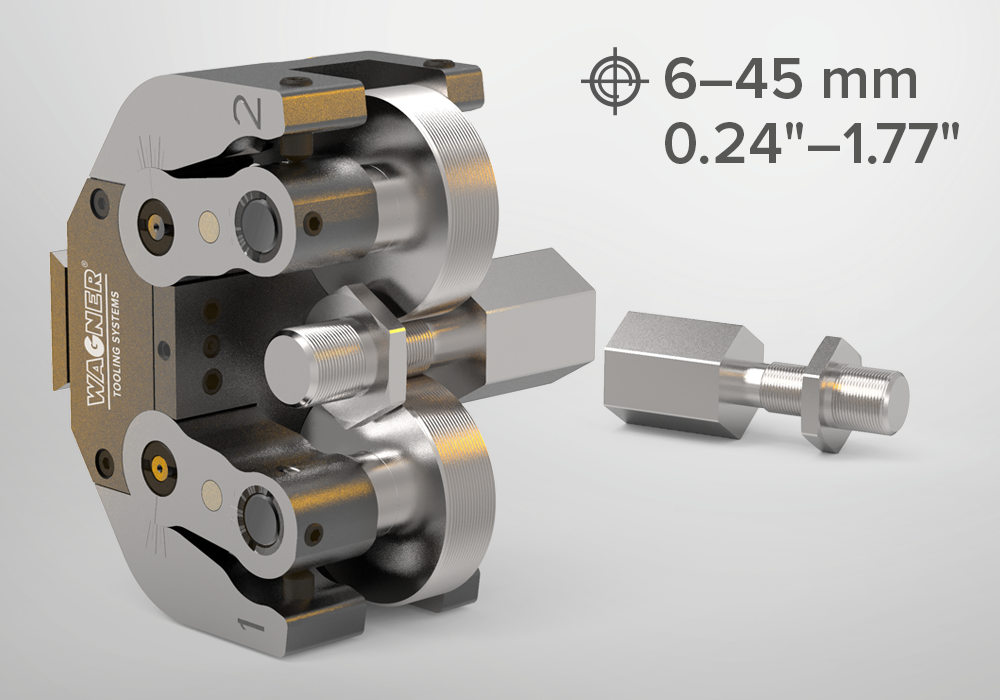

| Working range Ø Fine thread | 0.24"–1.77" |
| Pitch max. | 0.098" |
| Max. thread length (minus 2 × thread pitch) | 0.89" |
| Clearance from roll to tool edge | 0.531" |
Parameters
| Rolling speed | 30–80 m/min |
| Lubrication | Emulsion or oil; filtration of the lubricant (<40 μm)can improve the surface quality and the tool life |
Required tool set
| Adapter machine-specific |
| Micrometer setting gauge (standard) |
| Thread specific setting gauge (optional) |
