Technical data
| Weight of tool with rolls | 7.5 kg |
| Weight of adapter | approx. 3.0 kg |
| Max. feed force | 9800 N |

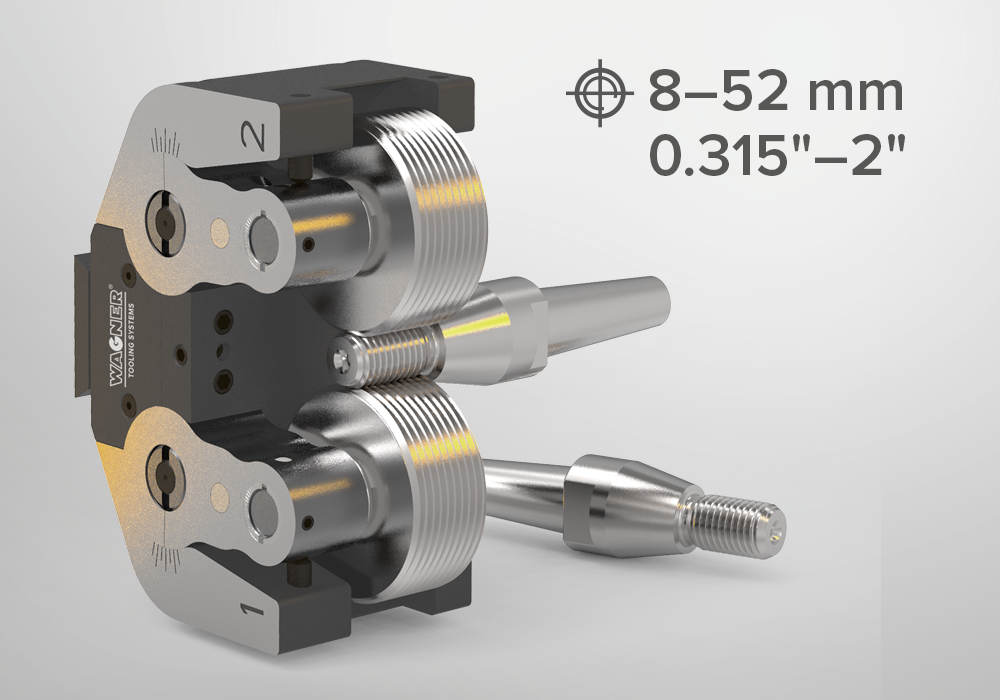

| Working range Ø Standard thread | 0.3125"–1" |
| Working range Ø Fine thread | 0.3125"–2" |
| Pitch max. | 0.118" |
| Max. thread length (minus 2 × thread pitch) | 1.23" |
| Clearance from roll to tool edge | 0.65" |
Parameters
| Rolling speed | 30–80 m/min |
| Lubrication | Emulsion or oil; filtration of the lubricant (<40 μm)can improve the surface quality and the tool life |
Required tool set
| Adapter machine-specific |
| Micrometer setting gauge (standard) |
| Thread specific setting gauge (optional) |
