Technical data
| Weight of tool with rolls | 5.9 kg |
| Weight of adapter | 3.0–5.0 kg |

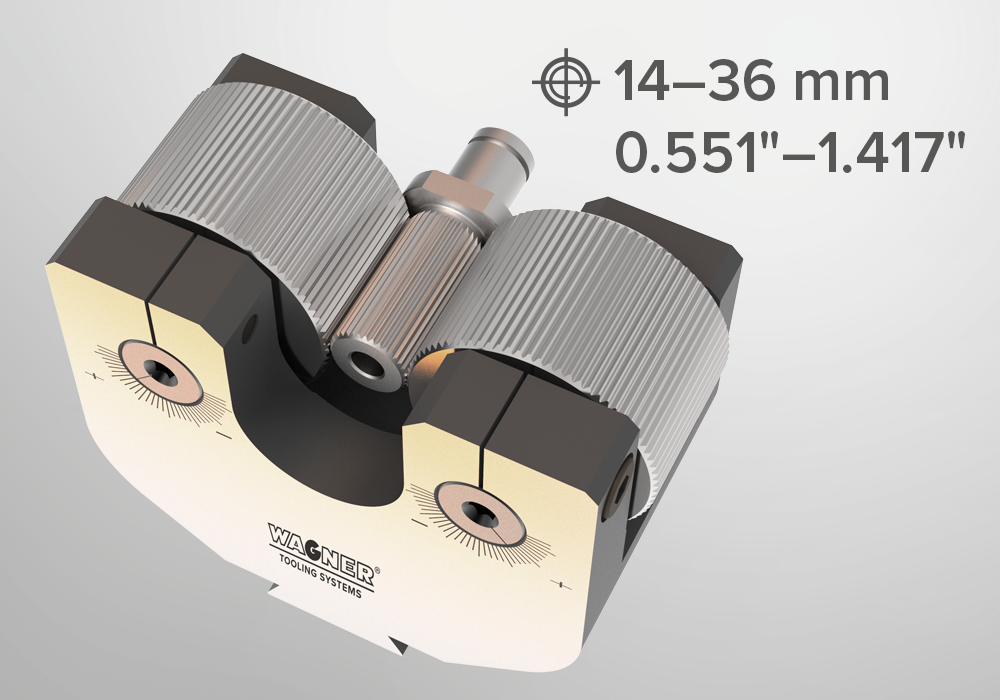

| Working range Ø | 0.551"–1.417" |
| Roll width max. | 1.575" |
Parameters
| Rolling speed | 30–80 m/min |
| Lubrication | Emulsion or oil; filtration of the lubricant (<40 μm)can improve the surface quality and the tool life |
Required tool set
| Adapter machine-specific |
| Micrometer setting gauge (standard) |
| Thread specific setting gauge (optional) |
