Technical data
| Weight of tool with rolls | 1.9 kg |
| Weight of adapter | 2.0–3.0 kg |

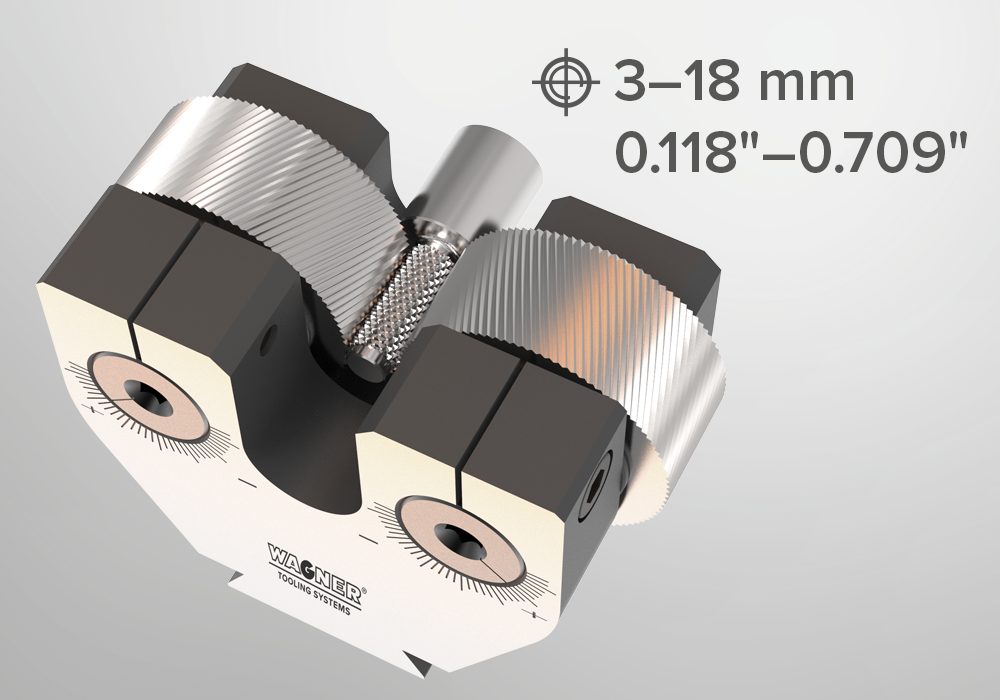

| Working range Ø | 0.118"–0.709" |
| Roll width max. | 0.787 |
Parameters
| Rolling speed | 30–80 m/min |
| Lubrication | Emulsion or oil; filtration of the lubricant (<40 μm) can improve the surface quality and the tool life |
Required tool set
| Adapter machine-specific |
| Micrometer setting gauge (standard) |
| Thread specific setting gauge (optional) |
