Technical data
| Working range Ø | 0.63–1.18″ |

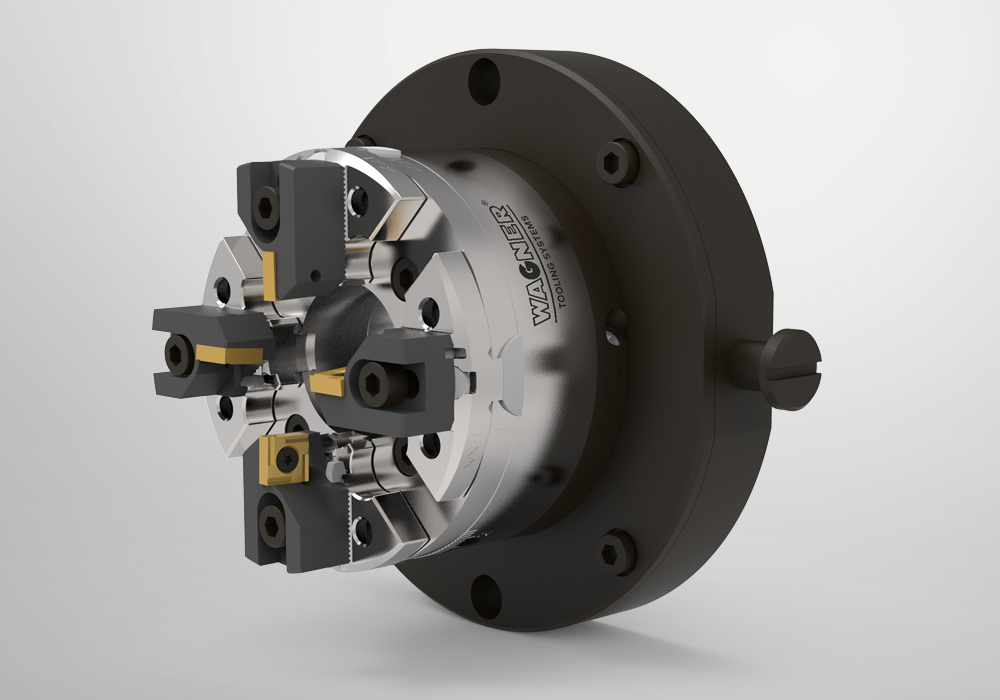

Multi-cutter turning system MSD30R
Required tool set
Inserts
| Wendeplattenhalter | Wendeplatte | Schneidenlage | Arbeitsbereich |
| W01 B5.0 | Wagner W01 | 89° | 16–30 mm |
| Z5.1 SCMT89 | ISO SCMT09T3 | 89° | 16–30 mm |
| Z5.1 CCGT90 | ISO CCGT09T3 | 90° | 16–30 mm |
| Z5.1 CCGT90 | ISO CCMT09T3 | 90° | 16–30 mm |
| Z5.1 SCMT90 | ISO SCMT09T3 | 45° | 16–30 mm (Fasen) |
