Technical data
| Working range Ø | 0.079–0.787″ |

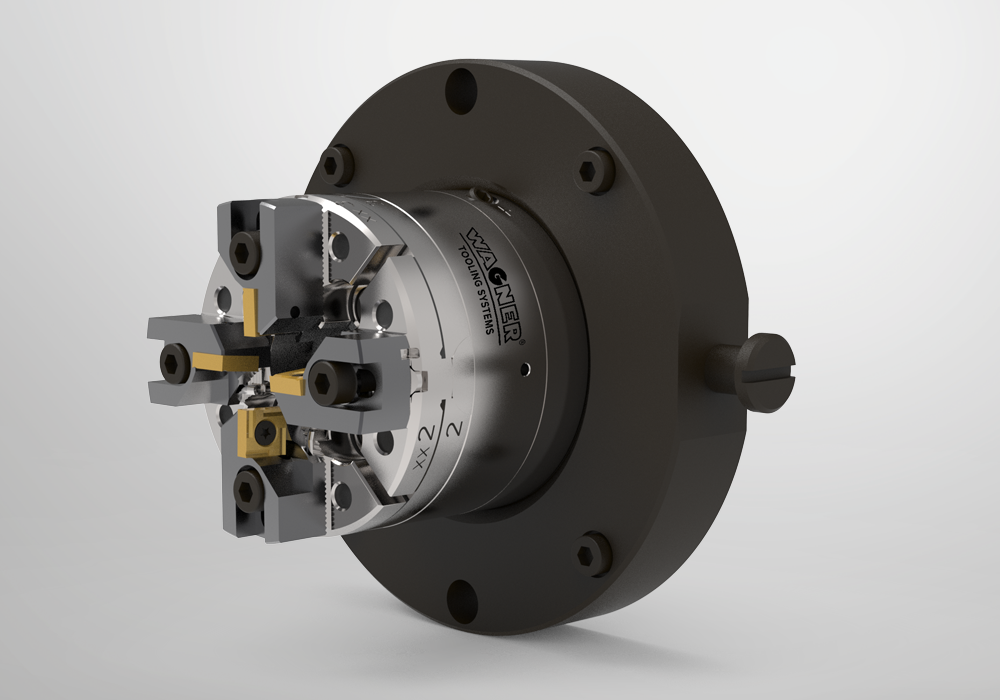

Multi-cutter turning system MSD20R
Required tool set
Shanks and flanges on request
Inserts
| Wendeplattenhalter | Wendeplatten | Schneidenlage | Arbeitsbereich |
| W01 B5.0 | Wagner W01 | 89° | 1–16 mm |
| W02 B5.0 | Wagner W02 | 89° | 16–20 mm |
| Z5.1 SCMT89 | ISO SCMT09T3 | 89° | 1–16 mm |
| Z5.1 CCGT90 | ISO CCGT09T3 | 90° | 1–16 mm |
