Technical data
| Working range Ø | 0.079–0.787″ |

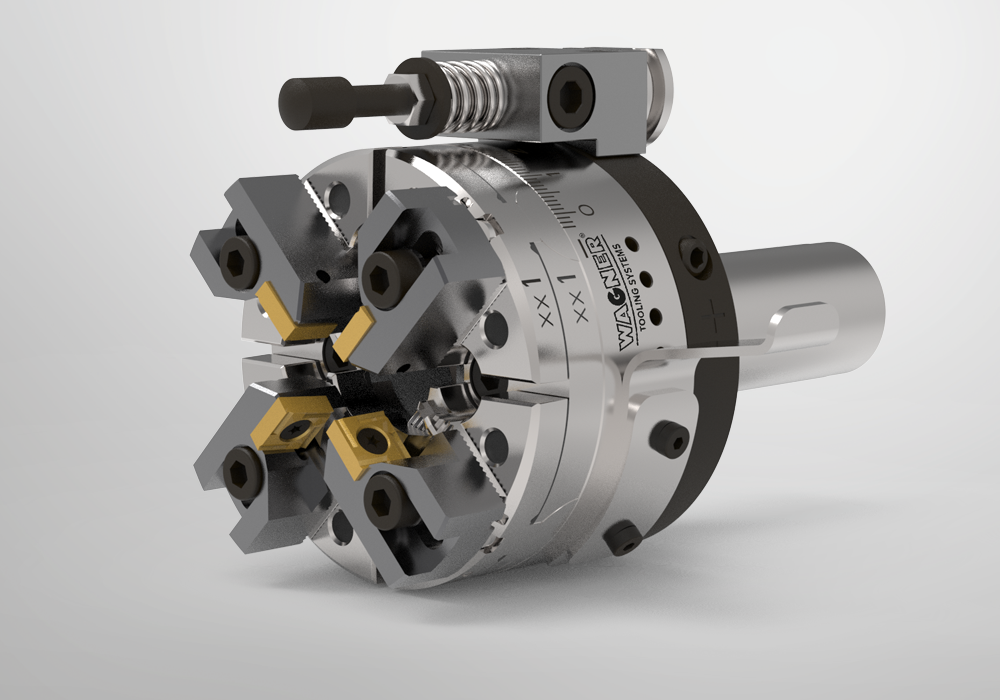

Multi-cutter turning system MSD20
Inserts
| Wendeplattenhalter | Wendeplatten | Schneidenlage | Arbeitsbereich |
| W01 B5.0 | Wagner W01 | 89° | 1–16 mm |
| W02 5.0 | Wagner W02 | 89° | 16–20 mm |
| Z5.1 SCMT 89 | ISO SCMT09T3 | 89° | 1–16 mm |
| Z5.1 CCGT 90 | ISO CCGT09T3 | 90° | 1–16 mm |
| Z5.1 CCGT 90 | ISO CCMT09T3 | 90° | 1–16 mm |
| Z5.1 SCMT 45 | ISO SCMT09T3 | 45° | 2–25 mm (Fasen) |

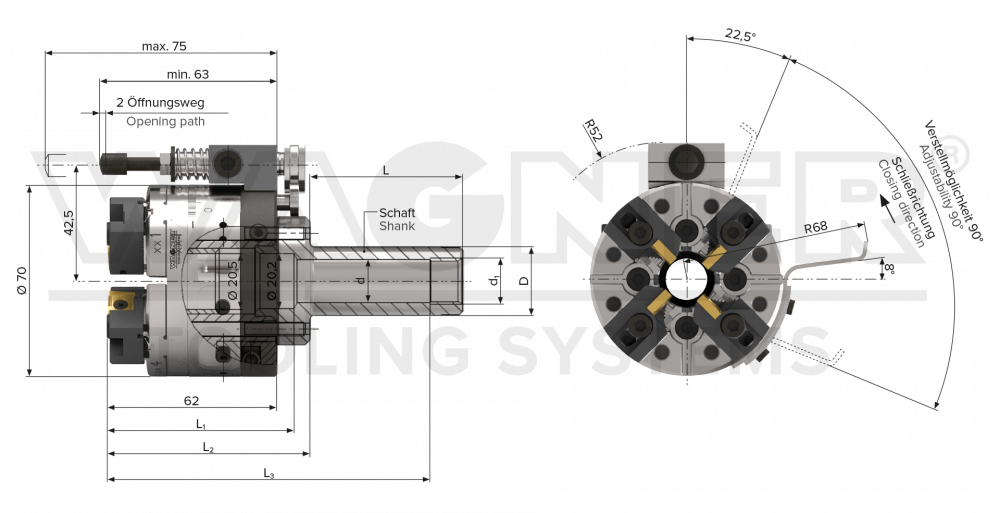

Shanks for multi-cutter turning system MSD20
mm (Inch)
| Schaft-Ø D | d mm | d1 | L mm | L1 mm | L2 mm | L3 mm |
| 16 | 10.2 | R1/8" | 46 | 58 | 47.5 | 47.5 |
| 19,05 (3/4") | 12.2 | R1/8" | 46 | 58 | 47.5 | 47.5 |
| 20 | 12.2 | R1/8" | 46 | 58 | 47.5 | 47.5 |
| 25 | 17 | R3/8" | 50 | 62 | 46 | 46 |
| 25,4(1") | 17 | R3/8" | 56 | 68 | 54.5 | 54.5 |
| 28,5 | 10 | R1/2" | 80 | 92 | 62 | 62 |
| 40 | 16.2 | M6 | 120 | 132 | 57.5 | 57.5 |
| VDI20 | 16.5 | – | 40 | 71.5 | 77 | – |
| VDI25 | 16.2 | – | 48 | 82.5 | 87.5 | – |
| VDI30 | 16.2 | – | 55 | 82.5 | 87.5 | – |
| VDI40 | 20.2 | – | 63 | 134.5 | 87.5 | – |
