Technical data
| Working range Ø | 0.04–0.472″ |

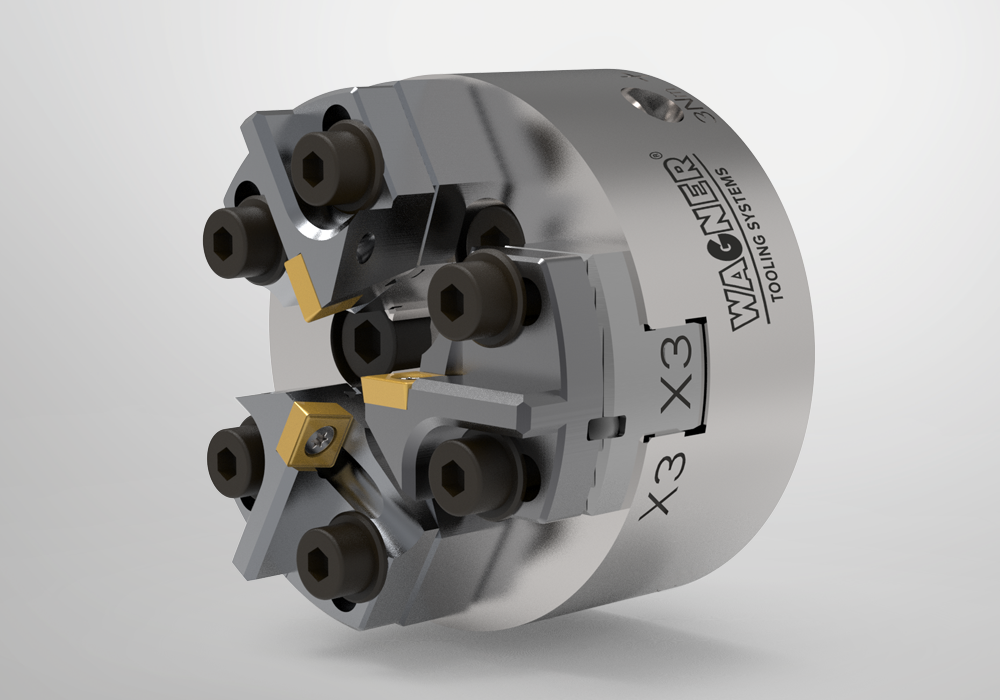

Multi-cutter turning system DSD12
Inserts
| Wendeplattenhalter | Wendeplatten | Schneidenlage | Arbeitsbereich |
| Z5.0 CCMT90 | ISO CCMT0602 | 90° | 1–12 mm |
Shanks for multi-cutter turning system DSD12
mm (Inch)
| Schaft-Ø D mm / Shank-Ø D | d mm | d1 | L mm | L1 mm | L2 mm |
| 12 | 5 | M6 | 34 | 46 | 38 |
| 16 | 7 | G1/8″ | 48 | 60 | 48 |
| 19.05 (3/4″) | 12.2 | G1/8″ | 46 | 58 | 47.5 |
| 20 | 12.2 | G1/8″ | 46 | 58 | 47.5 |
| 22 | 12.2 | G1/8″ | 46 | 58 | 47.5 |
| 25.4 (1″) | 12.2 | G1/8″ | 56 | 68 | 54.5 |
