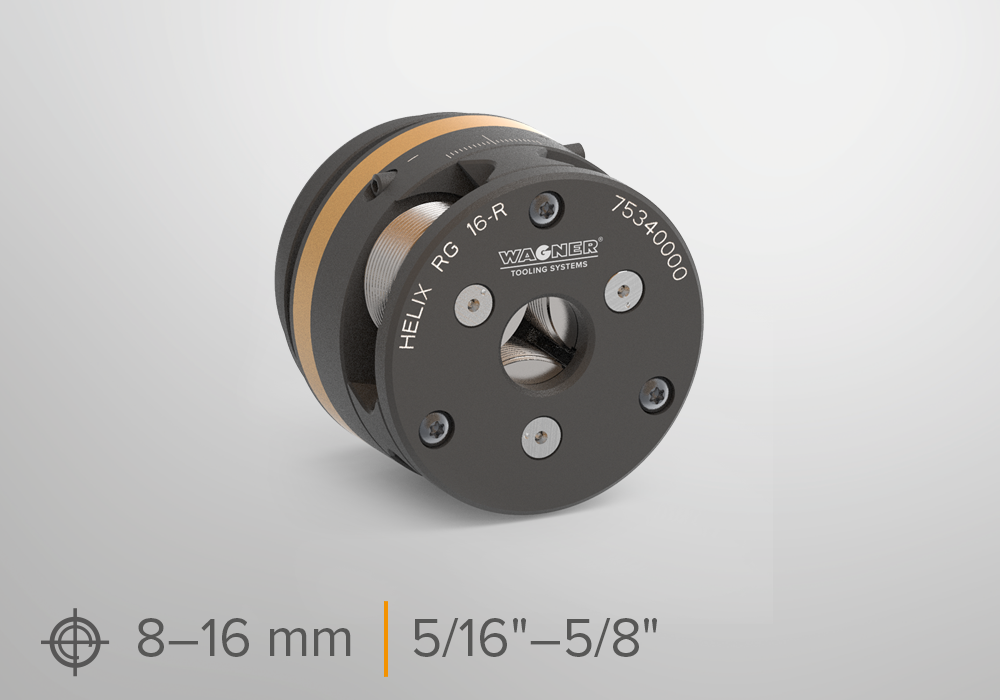

HELIX Axial rolling system RG16-R / FG16-R

Technical data

Weight of tool with rolls 2.2 kg
Working range Ø 5/16“ – 5/8“
Pitch max. 10 t.p.i.

HELIX axial rolling system RG16-R

Metric ISO thread DIN 13 standard and fine thread M8–M16
American UN/UNC/UNF/ UNEF/UNS thread ASME B1.1 UN/UNC/UNF 5/16"–5/8"
Pipe thread DIN EN ISO 228 G 1/8″ + G 1/4″
Whitworth standard thread BS84 (BSW) BSW 5/16″–5/8″
Whitworth fine thread BS84 (BSF) BSF 5/16″–5/8″
Pipe thread DIN EN 10226 ISO 7, K1/16 R 1/8" + R 1/4"
American tapered pipe threads ANSI/ASME B1.20.1 ANSI 1.20.3 NPT1/8" + NPT 1/4"

HELIX axial rolling system FG16-R

Metric ISO thread DIN 13 standard and fine thread M8×0.5–M16×1.5
American UN/UNC/UNF/ UNEF/UNS thread ASME B1.1 UNEF 5/16"–5/8"
Pipe thread DIN EN ISO 228 G 3/8″
Whitworth standard thread BS84 (BSW) BSW 5/16″–5/8″
Whitworth fine thread BS84 (BSF) BSF 5/16″–5/8″
Pipe thread DIN EN 10226 ISO 7, K1/16 R 3/8"
American tapered pipe threads ANSI/ASME B1.20.1 ANSI 1.20.3 NPT 3/8"

Shank Ø

Information in mm (inch)

Schaft-Ø D d mm L mm Ls mm L1 mm L2 mm L3 mm G
19,05 (3/4″) 12.5 49 42 7.2 – – M14-LH
20 12.5 49 42 7.2 – – M14-LH
22 12.5 49 42 7.2 – – M14-LH
25 16.5 77.2 70 7.2 – – M20 × 1.5
25,4 (1″) 16.5 77.2 70 7.2 – – M20 × 1.5
30 22.5 67 60 7.2 – 52 M18 × 1.5
32 22.5 87 80 7.2 – 52 M24 × 1.5
VDI20 16.5 59.7 40 19.7 8 16 –
VDI30 16.5 78 55 23 8 69 –
VDI40 25 86 63 23 16 71 –

HELIX 16: Thread sizes

Metrisches ISO-Gewinde DIN 13 RG16-S / RG16-R FG16-S / FG16-R
M8 × 1,25 X
M8 × 1 X
M8 × 0,75 X X
M8 × 0,5
M9 × 1,25 X
M9 × 1 X
M9 × 0,75 X
M9 × 0,5 X
M10 × 1,5 X
M10 × 1,25 X
M10 × 1 X X
M10 × 0,75 X
M10 × 0,5 X
M11 × 1,5 X
M11 × 1,25 X
M11 × 1 X X
M11 × 0,75 X
M11 × 0,5 X
M12 × 1,75 X
M12 × 1,5 X
M12 × 1,25 X X
M12 × 1 X
M12 × 0,75 X
M12 × 0,5 X
M13 × 1,75 X
M13 × 1,5 X
M13 × 1 X
M13 × 0,75 X
M13 × 0,5 X
M14 × 2 X
M14 × 1,75 X
M14 × 1,5 X
M14 × 1,25 X X
M14 × 1 X
M14 × 0,75 X
M14 × 0,5 X
M15 × 1,5 X X
M15 × 1 X
M15 × 0,75 X
M15 × 0,5 X
M16 × 2 X
M16 × 1,5 X X
M16 × 1,25 X
M16 × 1 X
M16 × 0,75 X
M16 × 0,5 X

Hinweis: Dezimalstellen werden hier mit Komma gekennzeichnet. Das deutsche „0,08 mm“ entspricht also dem englischen „0.08 mm“.

Unified threads ANSI B1.1

Unified-Gewinde ANSI B1.1 RG16-S / RG16-R FG16-S / FG16-R
5/16-24UNF X
5/16-28UN X
5/16-32UNEF X X
5/16-36UNS X X
3/8−16UNC X
3/8-20UN X
3/8-24UNF X
3/8-28UN X X
3/8-32UNEF X
3/8-36UNS X
7/16-14UNC X
7/16-16UN X
7/16-20UNF X
7/16-22UNS X X
7/16-26UNS X X
7/16-28UNEF X
7/16-32UN X
7/16-36UNS X
1/2-13UNC X
1/2-16UN X
1/2-18UN X
1/2-20UNF X X
1/2-22UNS X X
1/2-26UNS X
1/2-28UNEF X
1/2-32UN X
9/16-12UN X
9/16-14UN X
9/16-16UN X
9/16-18UNF X X
9/16-20UN X X
9/16-22UN X
9/16-24UNEF X
9/16-26UNEF X
9/16-28UN X
9/16-32UN X
5/8-11UNC X
5/8-12UN X
5/8-16UN X X
5/8-18UNF X X
5/8-20UN X
5/8-24UNEF X
5/8-28UN X
5/8-32UN X

Whitworth Pipe threads DIN EN ISO 228

Whitworth-Rohrgewinde DIN EN ISO 228 RG16-S / RG16-R FG16-S / RG16-R
G1/8 X X
G1/4 X X

Whitworth Pipe threads taper: DIN EN 10226 / DIN 2999 / DIN 3858

Whitworth-Rohrgewinde, kegelig: DIN EN 10226 / DIN 2999 / DIN 3858 RG16-S / RG16-R FG16-S / FG16-R
R1/8 X X
R1/4 X X
R3/8 X

American pipe threads NPT, taper: DIN EN 10226 / DIN 2999 / DIN 3858

Amerik. Rohrgewinde NPT, kegelig: DIN EN 10226 / DIN 2999 / DIN 3858 RG16-S / RG16-R FG16-S / FG16-R
NPT1/8 X X
NPT1/4 X X

Whitworth threads B. S. 84

Whitworth-Gewinde B. S. 84 RG16-S / RG16-R FG16-S / FG16-R
5/16-32BSFS X X
3/8″-16BSW X
3/8″-20BSF X
3/8″-26BSFS X X
3/8″-32BSFS X
7/16″-14BSW X
7/16″-18BSF X
7/16″-20BSFS X
7/16″-26BSFS X X
1/2″-12BSW X
1/2″-16BSF X
1/2″-20BSFS X X
1/2″-24BSFS X
1/2″-26BSFS X
9/16″-12BSW X
9/16″-16BSF X
9/16″-20BSFS X X
9/16″-26BSFS X
5/8″-11BSW X
5/8″-13BSFS X
5/8″-14BSF X
5/8″-20BSFS X
5/8″-22BSFS X
5/8″-26BSFS X
