Technical data
| Weight (total) | 3 kg |
| Working range Ø | 0.067"–1.024" |

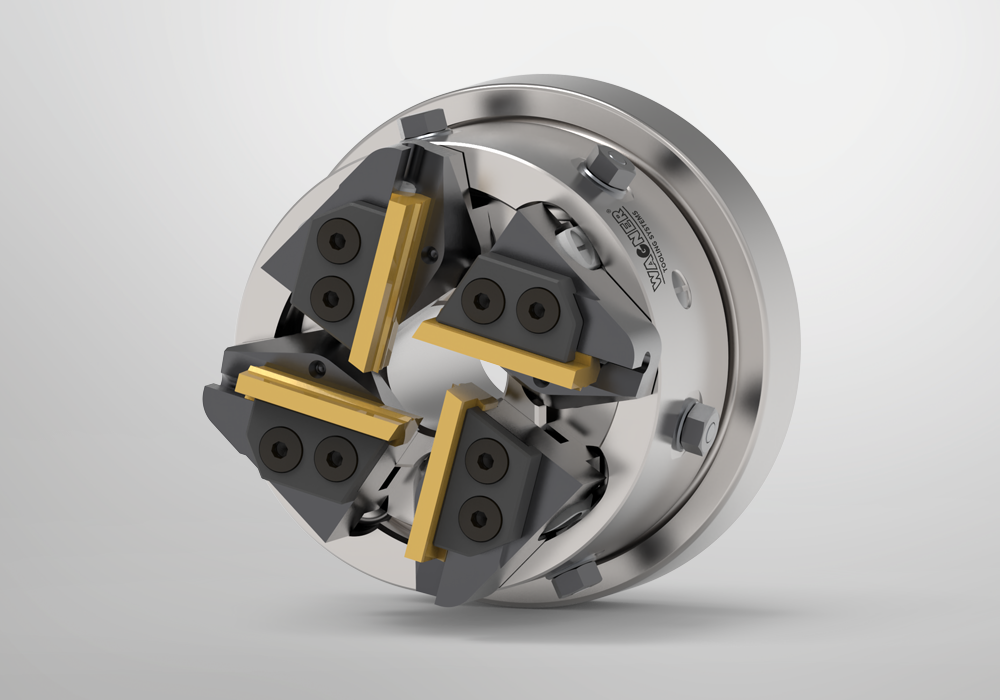

Thread cutting system ZR22-E
Required tool set
Shanks and flanges on request
Setting device with dial gauge
mm (Inch)
| Strehlerhalter | Arbeitsbereich Kern-Ø mm (Zoll / Inch) | Max. Einstechtiefe (radial) mm (Zoll / Inch) |
| ZR22/D-0.00 KD1-11.7 | 1.7–11.7 (0.067–0.46) | 2.3 (0.09) |
| ZR22/D-0.00 KD4-13.5 | 4–13.5 (0.157–0.53) | 2.2 (0.087) |
| ZR22/D-0.00 KD8.4-18 | 8.4–18 (0.33–0.71) | 2.0 (0.079) |
