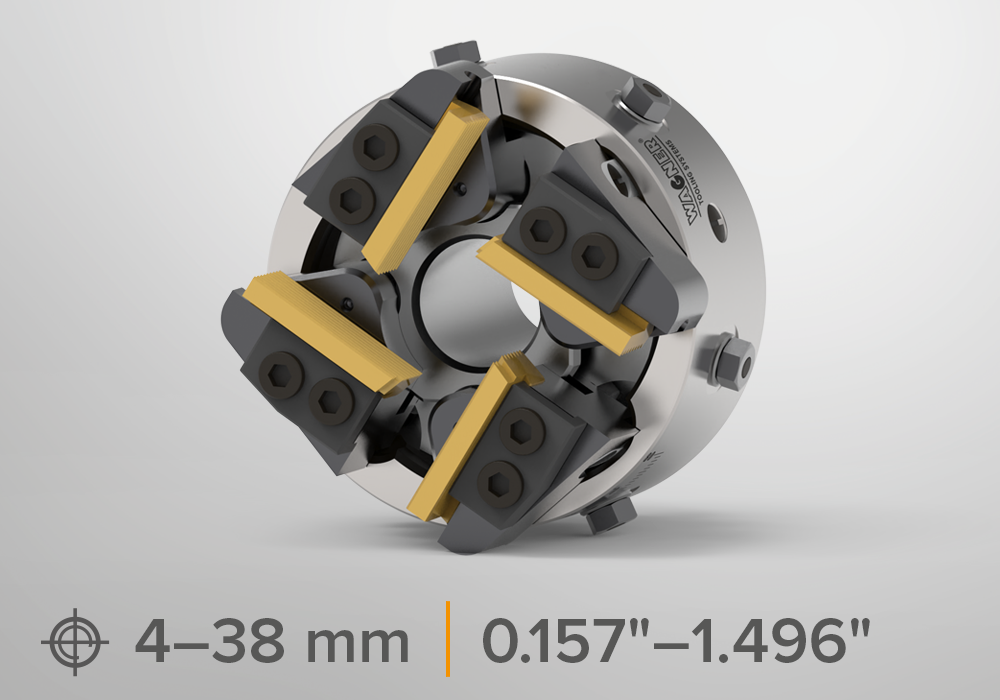

Thread cutting system ZR22-2

Technical data

Weight (total) 2.8 kg
Working range Ø 0.157"–1.496"
Pitch max. 13 t.p.i.
Chaser holder see holder tables

Required tool set

Control ring ZR22-70257500

Control ring ZR22-75001700

Shanks and flanges on request

Setting device with dial gauge
