Technical data
| Weight (total) | 2.8 kg |
| Working range Ø | 0"–0.66" |

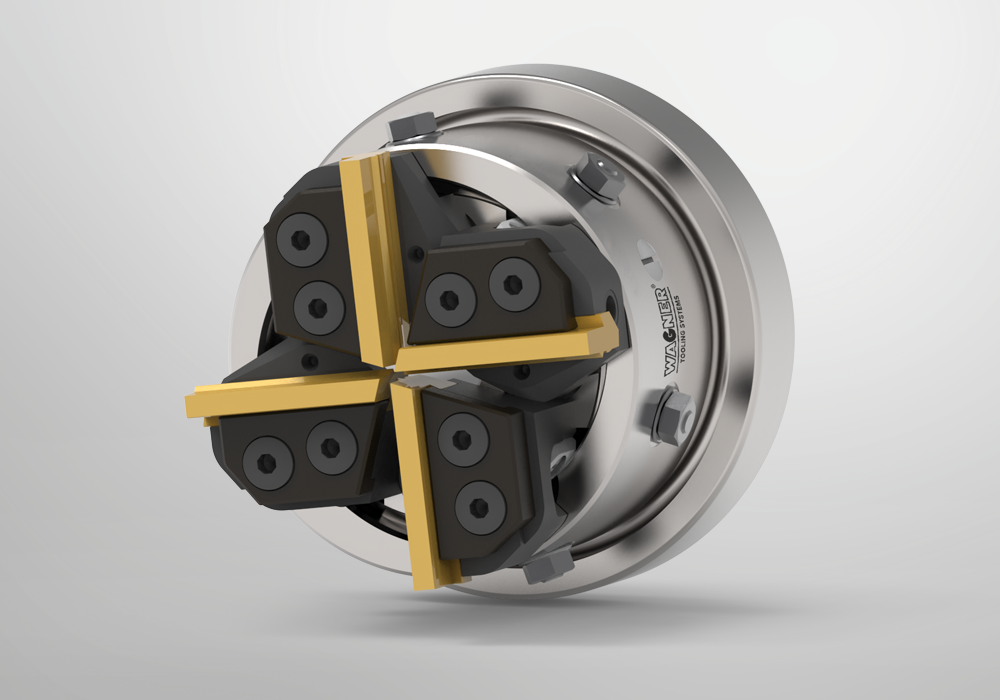

Thread cutting system ZR16-E
Required tool set
Shanks and flanges on request
Setting device with dial gauge
| Strehlerhalter | Arbeitsbereich Kern-Ø mm (Zoll / Inch) | Max. Einstechtiefe (radial) (Zoll / Inch) |
| ZR16/D-0,00 KD0-6.5 | 0–6.5 (0–0.256) | 1.6 (0.063) |
| ZR16/D-0,00 KD5-11.5 | 5–11.5 (0.197–0.453) | 1.6 (0.063) |
| ZR16/D-0,00 KD10-16.8 | 10–16.8 (0.394–0.66) | 1.75 (0.069) |
