Technical data
| Weight (total) | 32 kg |
| Working range Ø | 0.315"–3.15" |
| Pitch max. | 8 t.p.i. |
| Chaser holder | see holder tables |

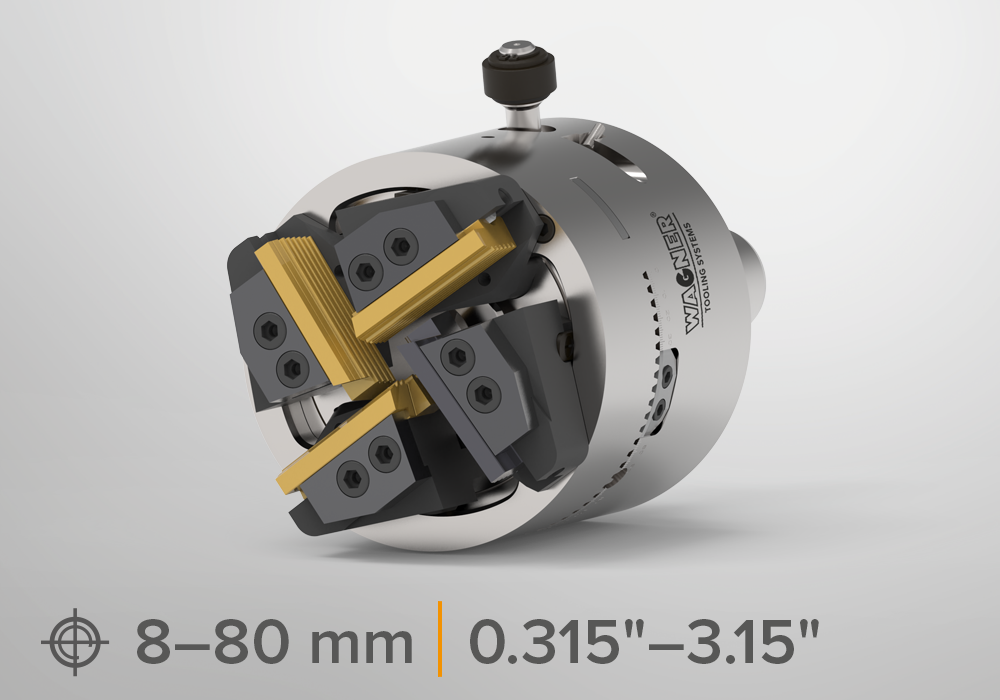

Thread cutting system ZE39 stationary
Required tool set
Setting device with dial gauge
Fixed shanks ZE39
mm (Inch)
| Schaft-Ø D mm | Länge Ls mm | d mm |
| 32 | 75 | 15 |
| 40 | 120 | 30 |
| 50 | 120 | 39.5 |
| 60 | 120 | 48.4 |
| VDI30 | 55 | 16.2 |
| VDI40 | 63 | 25 |
| VDI50 | 78 | 32 |
