Technical data
| Weight (total) | 50 kg |
| Working range pipe thread | R1–4″ |
| 1-11.5–4-8NPT | |
| Pitch max. | 8 t.p.i. |
| Chaser holder | see holder tables |

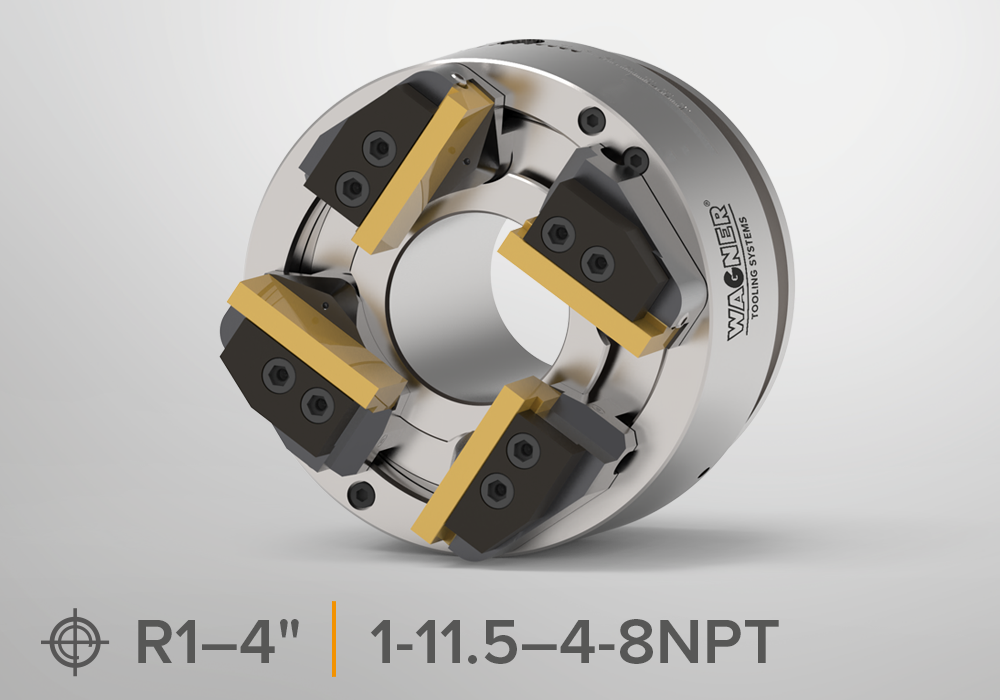

Thread cutting system Z76-2 rotating
Required tool set
Shanks and flanges on request
Setting device with dial gauge

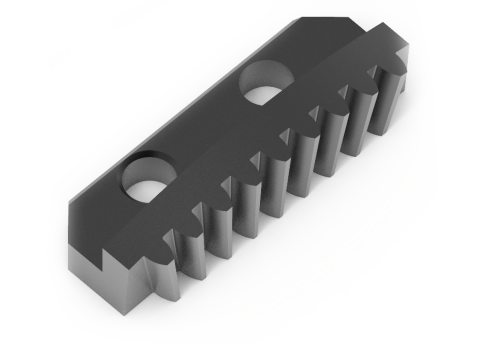

Toothed segments Z64-2 (set = 10 pieces) Toothed segments ensure an interlocking connection between the guide ring and the eccentric ring, thus preventing unintentional adjustment of the machining diameter. Toothed segments are mainly used when the cutting systems are used in a reversing manner or the tool spindles are stopped abruptly after thread cutting.
