Technical data
| Weight (total) | 23 kg |
| Working range pipe thread | R1/8–2″ DIN EN 10226 |
| 1/4-18–2-11.5NPT | |
| ANSI B1.20.1 | |
| Pitch max. | 11 t.p.i. |
| Eccentric rings and chaser holder | see holder tables |

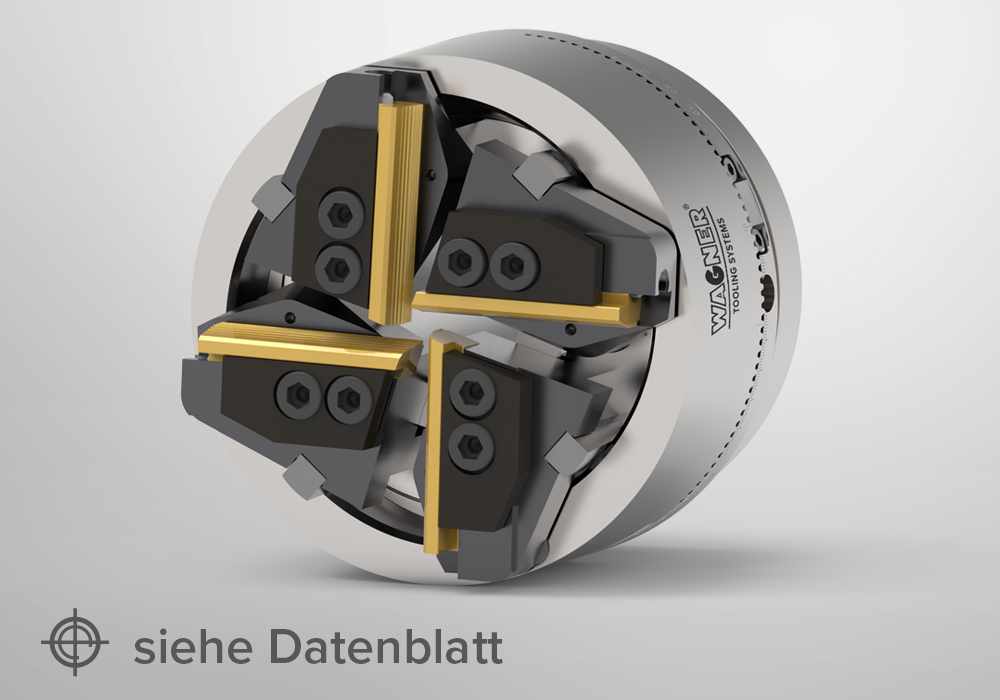

Thread cutting system Z39-K-2
Required tool set

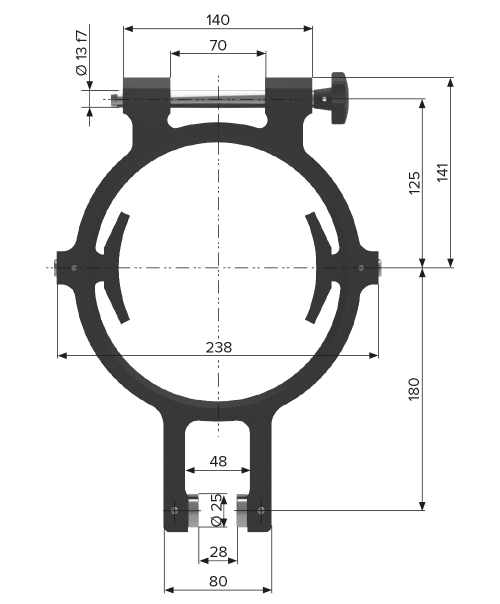

Control ring Z39-K-2
Shanks and flanges on request
Setting device with dial gauge

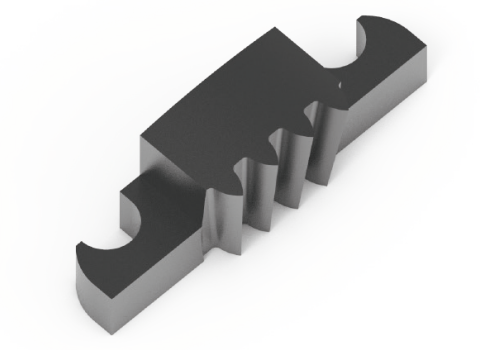

Toothed segments Z39-K-2 (set = 10 pieces) Toothed segments ensure an interlocking connection between the guide ring and the eccentric ring, thus preventing unintentional adjustment of the machining diameter. Toothed segments are mainly used when the cutting systems are used in a reversing manner or the tool spindles are stopped abruptly after thread cutting.
