Technical data
| Weight (total) | 17 kg |
| Pitch max. | 11 t.p.i. |
| Working range pipe thread | R1/8–1" DIN EN 10226 |
| 1/4-18–1-11.5NPT | |
| ANSI B1.20.1 | |
| Eccentric rings and chaser holder | see holder tables |

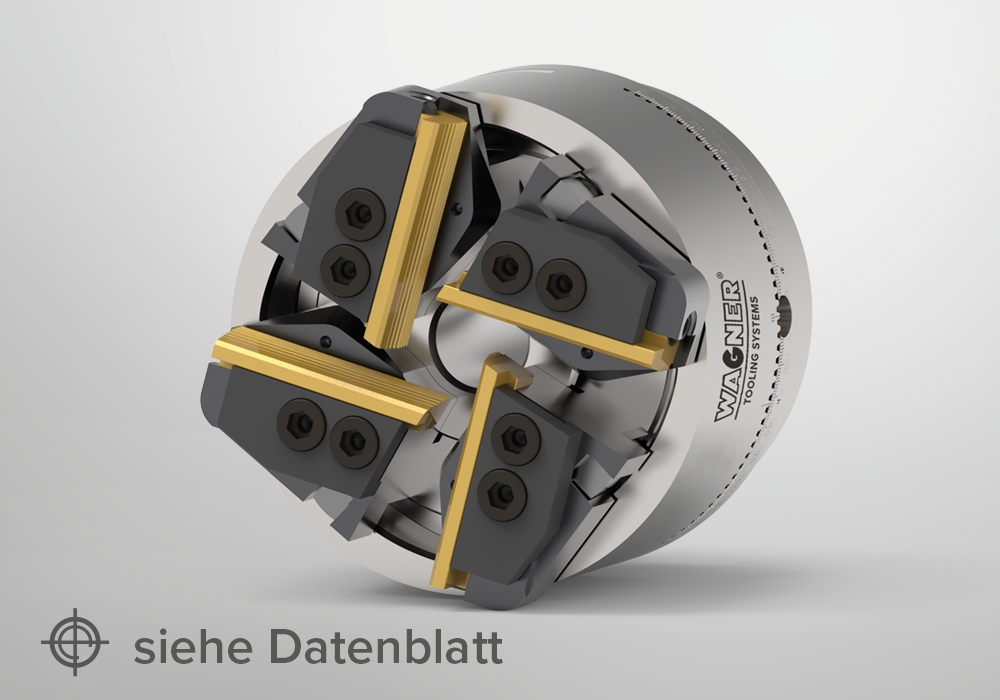

Thread cutting system Z 27-K
Required tool set
Control ring Z27-K
Shanks and flanges on request
Setting device with dial gauge
