Technical data
| Weight (total) | 140 kg |

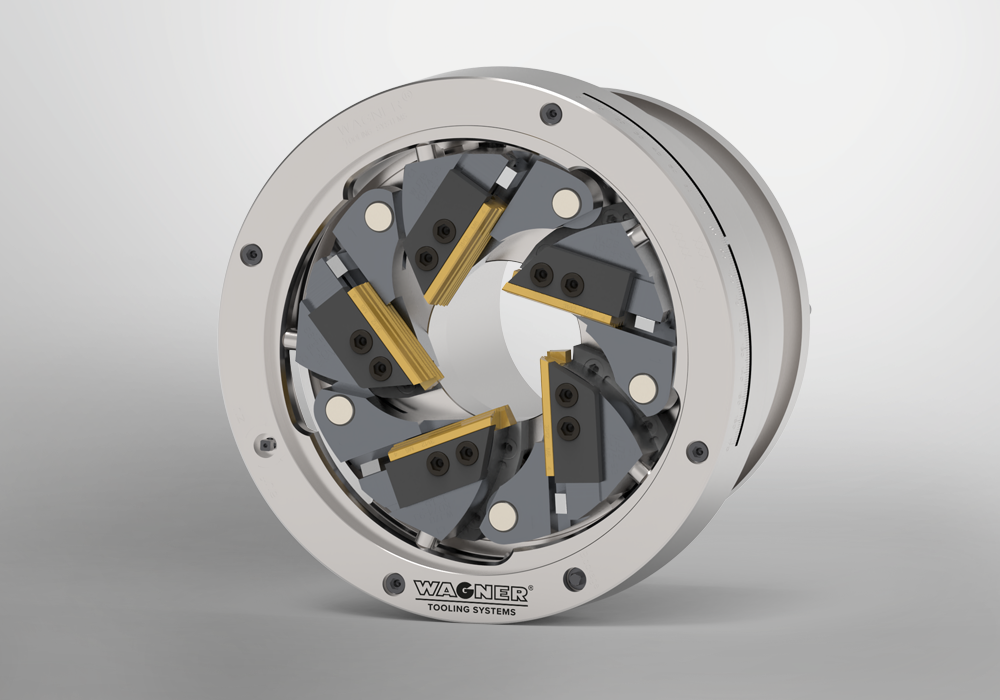

Thread cutting system WJK-WKK
Required tool set

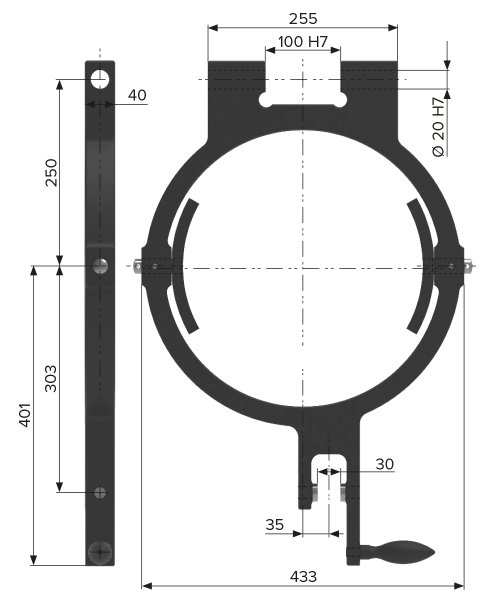

Control ring WJK-WKK
Setting device with dial gauge
Working range Ø WJK
| Metric standard and fine threads | M24–M100 |
| Whitworth and UN threads | 1–4″ |
| Whitworth pipe threads and NPT threads | G1–4″ |
| R1–4″ | |
| 1-111/2–4-8NPT | |
| Trapezoidal and round threads Ø | 24–90 mm |
| 0.94–3.5″ |
Working range Ø WKK
| Metric standard and fine threads | M24–M100 |
| M30 × 1.5–M120 × 2 | |
| Whitworth and UN threads | 1–6″ |
| Whitworth pipe threads and NPT threads | G1″–G6″ |
| R1″–R6″ | |
| 1-111/2–6-8NPT | |
| Trapezoidal and round threads Ø | 24–90 mm |
| 0.94–3.5″ |
