Technical data
| 90 kg |

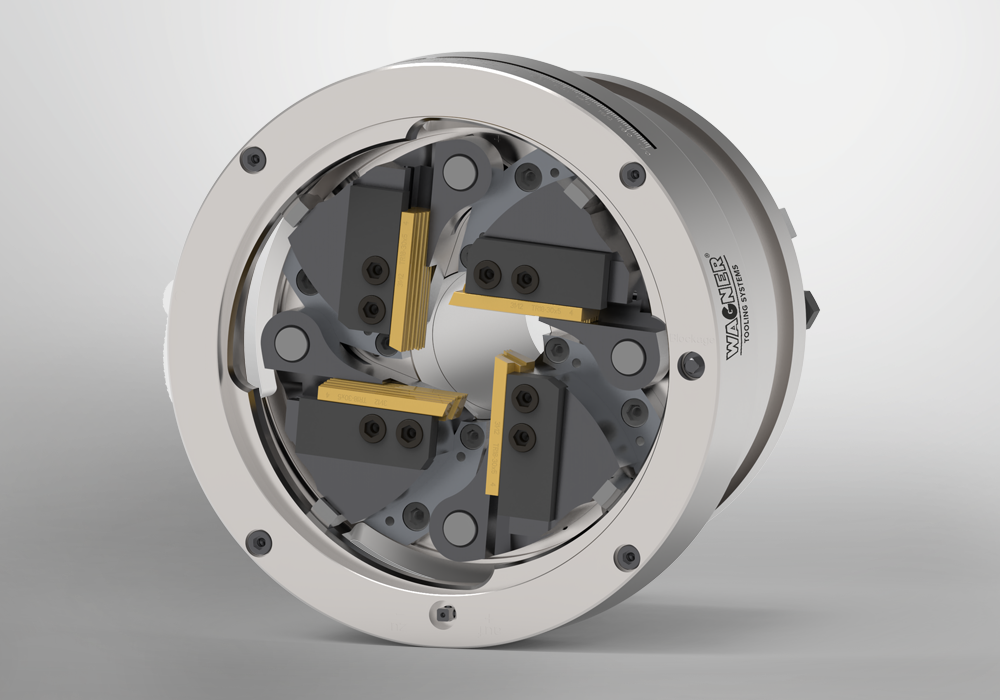

Thread cutting system WGK-WHK
Required tool set

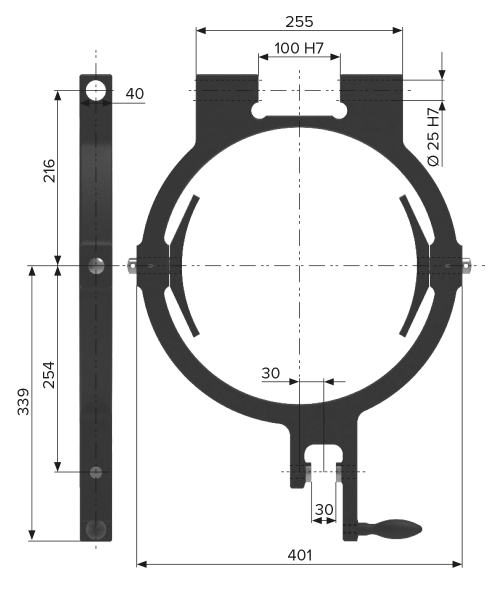

Control ring WGK-WHK
Setting device with dial gauge
Working range Ø WGK
| Metric standard and fine threads | M12–M76 |
| Whitworth and UN threads | 1/2–31/2″ |
| Whitworth pipe threads and NPT threads | G1/2–3″ |
| R1/2–3″ | |
| 1/2-14–3-8NPT | |
| Trapezoidal and round threads Ø | 12–62 mm |
| 0.39–1.73″ |
Working range Ø WHK
| Metric standard and fine threads | M12–M76 |
| M18 × 1.5–M88 × 3 | |
| Whitworth and UN threads | 1/2–31/2″ |
| Whitworth pipe threads and NPT threads | G1/2–4″ |
| R1/2–3″ | |
| 1/2-14–4-8NPT | |
| Trapezoidal and round threads Ø | 12–62 mm |
| 0.47–2.44″ |
