Technical data
| Weight (total) | 50 kg |

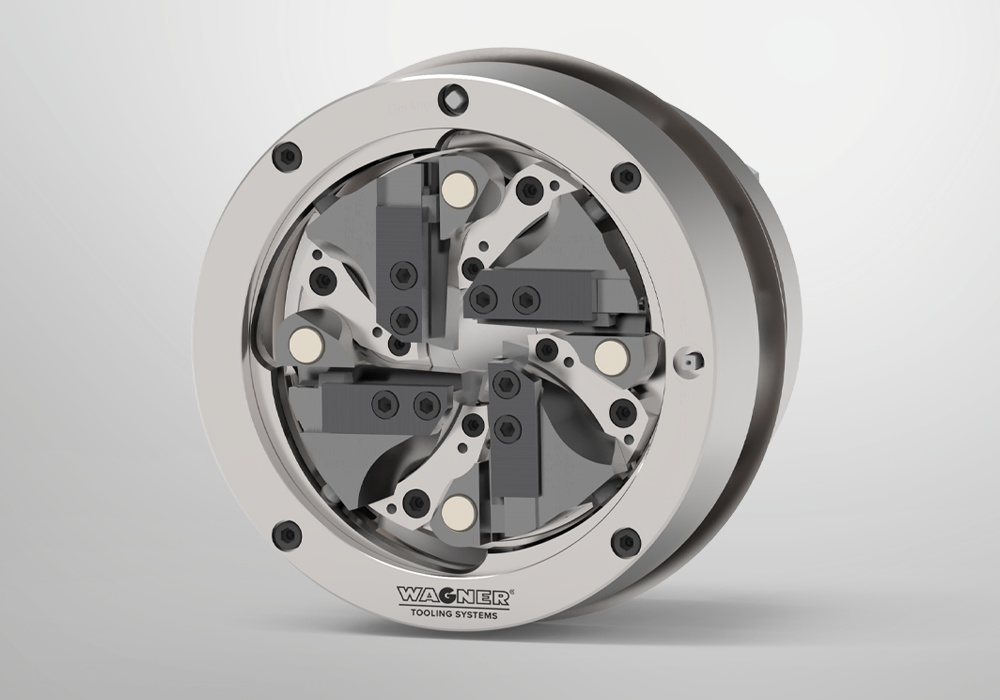

Thread cutting system WDK-WEK
Required tool set

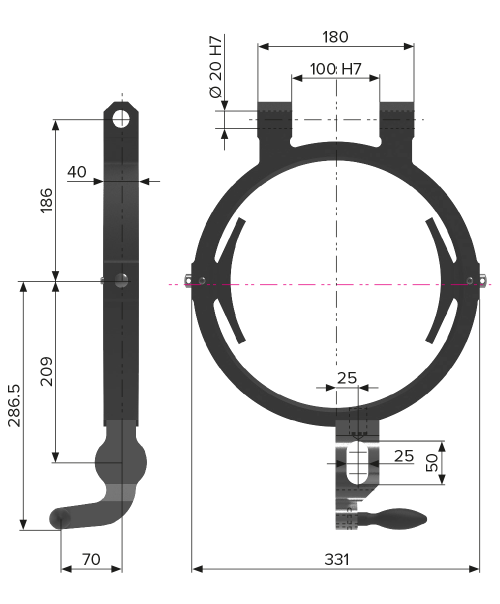

Control ring WDK-WEK
Setting device with dial gauge
Working range Ø WDK
| Metric standard and fine threads | M8–M52 |
| Whitworth and UN threads | 3/8–2" |
| Whitworth pipe threads and NPT threads | G1/4–2" |
| R1/4–2" | |
| 1/4-18–2-11.5NPT | |
| Trapezoidal and round threads Ø | 10–44 mm |
| 0.39–1.73″ |
Working range Ø WEK
| Metric standard and fine threads | M8–M52 |
| M16 × 1.5–M88 × 3 | |
| Whitworth and UN threads | 3/8–3" |
| Whitworth pipe threads and NPT threads | G1/4–3" |
| R1/4–3″ K1/16 | |
| 1/4-18–3-8NPT | |
| Trapezoidal and round threads Ø | 10–44 mm |
| 0.39–1.73″ |
