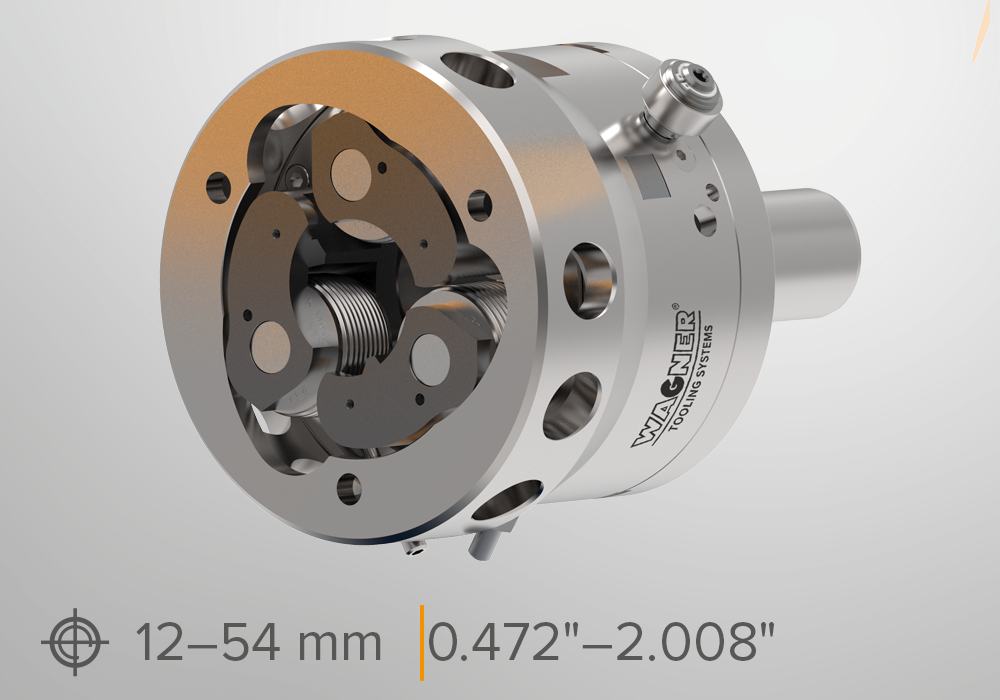

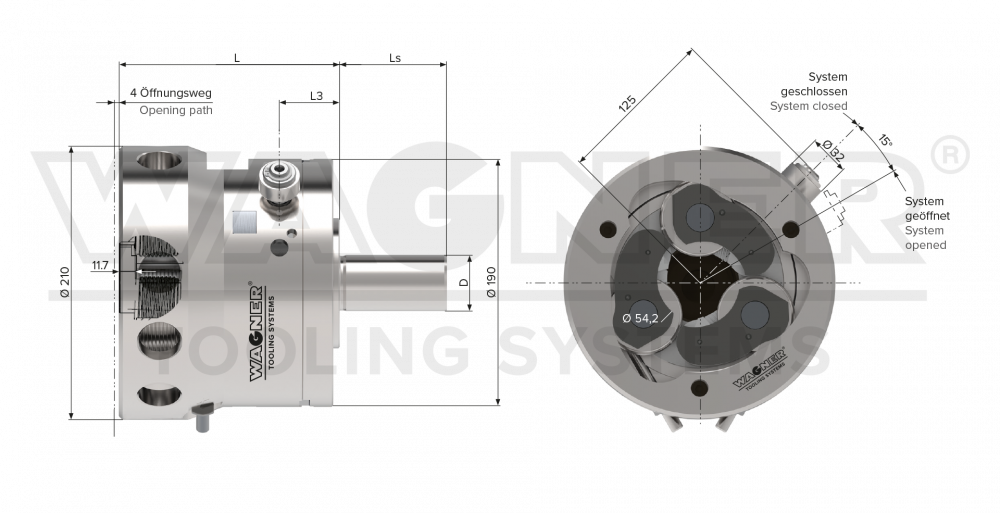

Axial rolling system RS45

Shank Ø

Information in mm (inch)

Schaft-Ø D	d mm	L mm	Ls mm	L1 mm	L2 mm	L3 mm
32	15	155.5	75	146.5	∞	42.5
40	30	155.5	120	146.5	∞	42.5
50	39.5	165.5	120	156.5	269.5	42.5
50	39.5	165.5	120	156.5	∞	42.5
60	48.4	165.5	120	∞	–	42.5
VDI30	16.2	181.5	55	175.5	229.6	58.5
VDI40	25	181.5	63	175.5	229.6	58.5
VDI50	32	181.5	78	175.5	242.5	58.5
