Technical data
| Weight of tool with rolls | 28 kg |
| Working range Ø | 1.654“–2.953“ |
| Pitch max. | 8 t.p.i. |

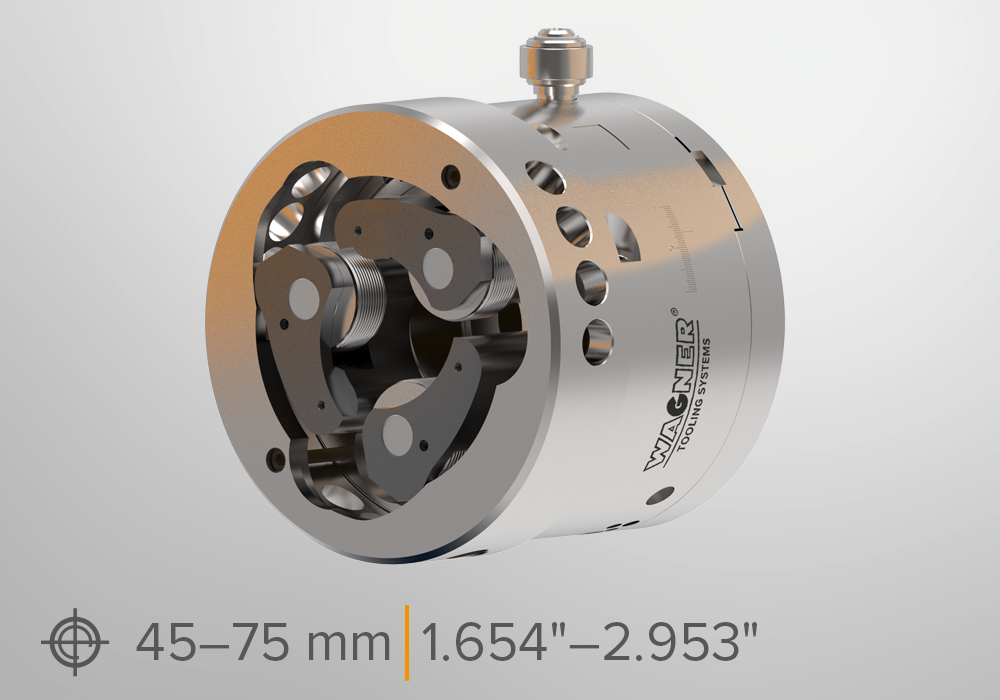

Axial rolling system RS42/75
Shank Ø
Information in mm (inch)
| Schaft-Ø D | d mm | L mm | Ls mm | L1 mm | L2 mm | L3 mm |
| 32 | 15 | 163.5 | 75 | 154.5 | ∞ | 42.5 |
| 40 | 30 | 163.5 | 120 | 154.5 | ∞ | 42.5 |
| 50 | 39.5 | 163.5 | 120 | 154.5 | ∞ | 42.5 |
| 60 | 48.5 | 163.5 | 120 | ∞ | – | 42.5 |
| VDI30 | 16.2 | 179.5 | 55 | 173.5 | 227.5 | 58.5 |
| VDI40 | 25 | 179.5 | 63 | 173.5 | 227.5 | 58.5 |
| VDI50 | 32 | 179.5 | 78 | 173.5 | 240.5 | 58.5 |
