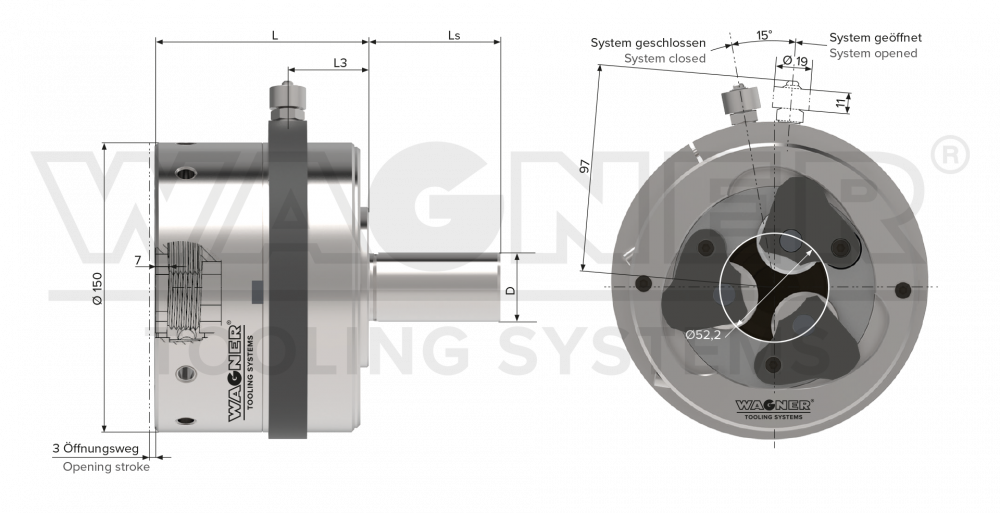

Axial rolling system RS27 / 56 H36

Technical data

Weight of tool with rolls	11 kg
Working range Ø Standard thread	0.197“–1.063“
Working range Ø Fine thread	0.197“–2.087“
Pitch max.	8 t.p.i.

Shank Ø

mm (Inch)

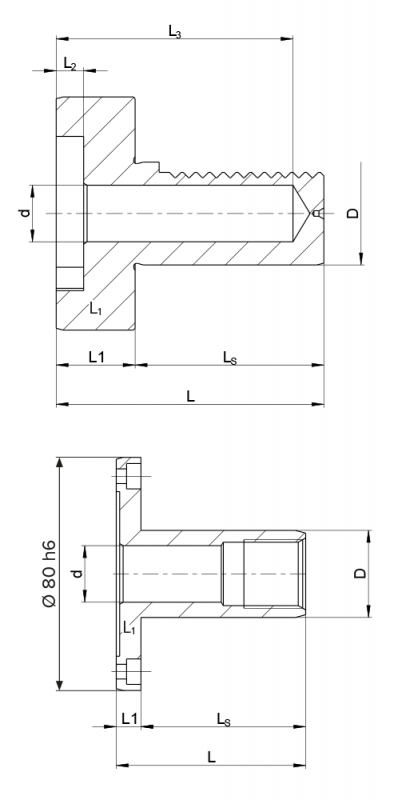

Schaft-Ø D	d mm	L mm	Ls mm	L1 mm	L2 mm	L3mm	L3 mm
25	18.2	–	175.3	65	∞	–	42.5
25.4 (1″)	18.2	–	175.3	65	∞	–	42.5
30	23.5	M25 × 1.5	175.3	80	∞	–	42.5
31.75 (1 1/4″)	23.5	M25 × 1.5	175.3	80	∞	–	42.5
32	23.5	M25 × 1.5	175.3	80	∞	–	42.5
36	23.5	G1/4″	175.3	100	190	–	42.5
38.1 (1 1/2″)	23.5	–	175.3	88	∞	–	42.5
40	27.2	M28 × 1.5	175.3	80	170	–	42.5
50	38.5	–	175.3	120	∞	–	42.5
50.8 (2″)	38.5	–	175.3	65	∞	–	42.5
60	42	–	175.3	65	∞	–	42.5
VDI30	30	16.2	124	55	120	169	58.5
VDI40	42	25	124	63	120	171	58.5
VDI50	42	27.2	124	78	120	186	58.5
