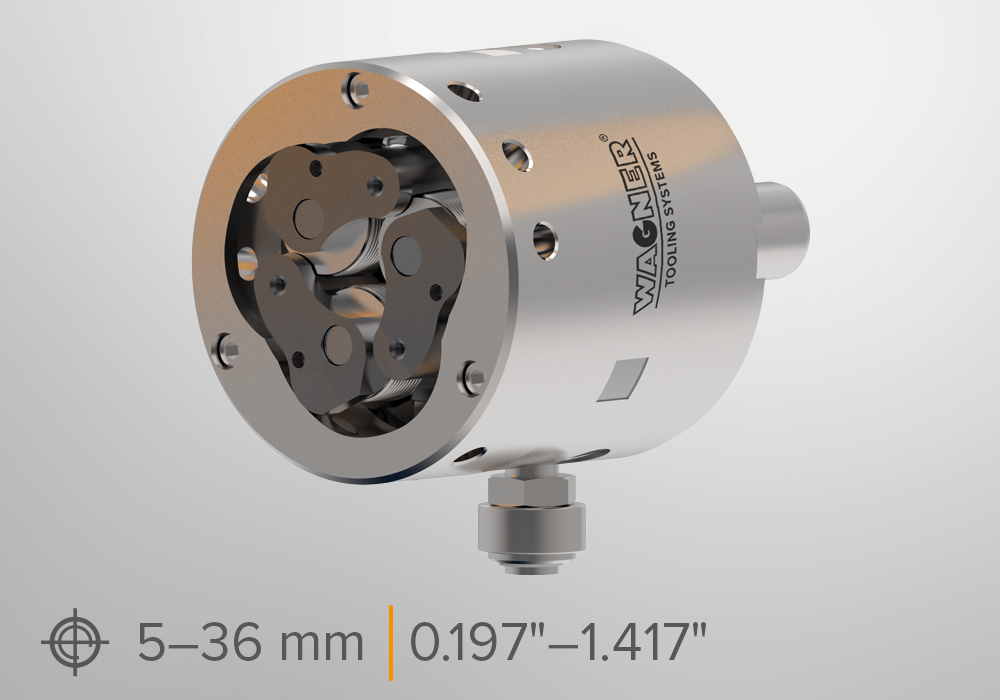

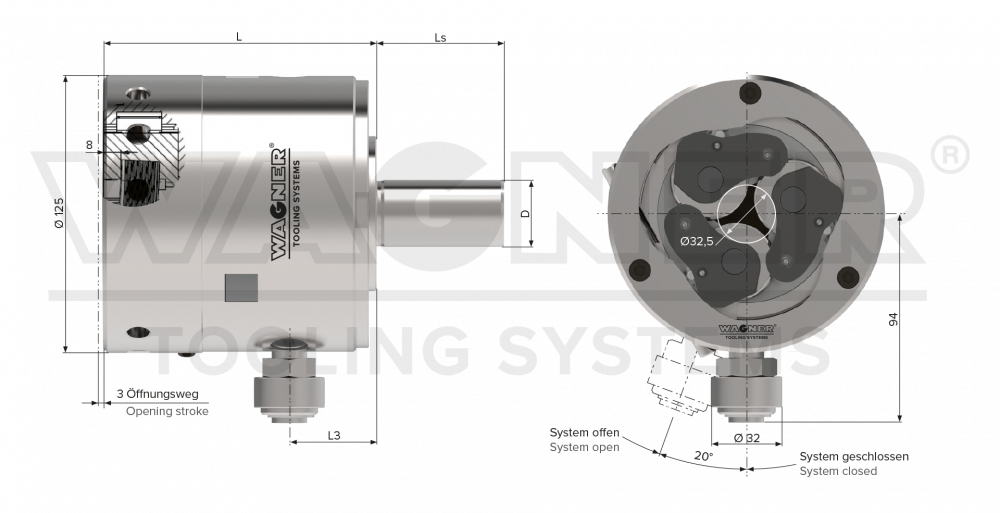

Axial rolling system RS22-2

Shank Ø

Information in mm (inch)

Schaft-Ø D	d mm	L mm	Ls mm	L1 mm	L2 mm	L3 mm
25	18.2	121.8	65	∞	–	37.8
25.4 (1″)	18.2	121.8	65	∞	–	37.8
30	23.5	121.8	80	∞	–	37.8
31,75 (1 1/4″)	23.5	121.8	80	∞	–	37.8
32	23.5	121.8	80	∞	–	37.8
36	23.5	121.8	100	203.8	–	37.8
38.1 (1 1/2″)	23.5	121.8	88	∞	–	37.8
40	27.2	121.8	80	183.8	–	37.8
50	38.5	121.8	120	∞	–	37.8
50.8 (2″)	38.5	121.8	65	∞	–	37.8
60	42	121.8	120	∞	–	37.8
VDI30	16.2	137.8	55	133.8	182.8	53.6
VDI40	25	137.8	63	133.8	184.8	53.6
VDI50	32	137.8	78	133.8	199.8	53.6
