Technical data
| Weight of tool with rolls | 1.7 kg |
| Working range Ø Standard thread | 0.118“–0.63“ |
| Working range Ø Fine thread | 0.118“–0.945“ |
| Pitch max. | 11 t.p.i. |

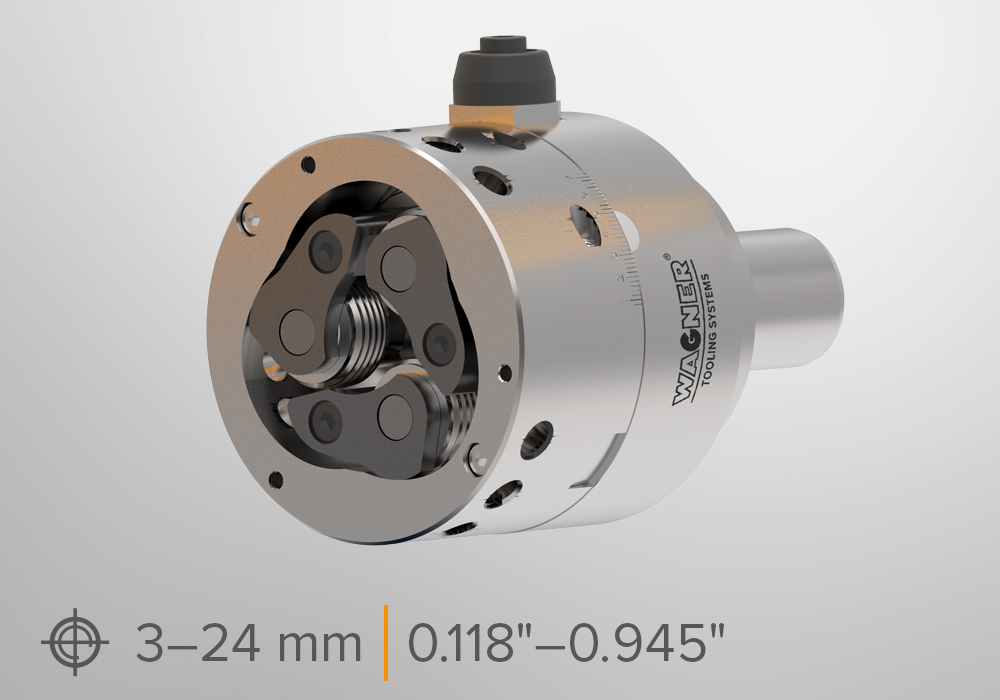

Axial rolling system RS16 FL

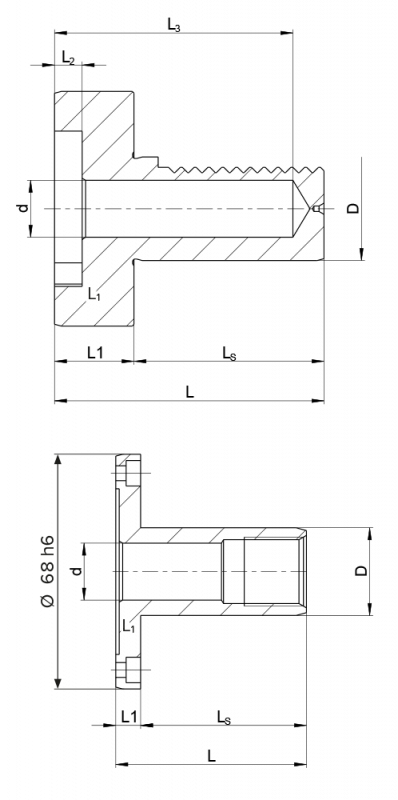

Shank Ø
mm (Inch)
| Schaft-Ø D | d mm | L mm | Ls mm | L1 mm | L2mm | L3 mm |
| 19.05 (3/4″) | 12.5 | 75 | 42 | 68.8 | 105 | 25.5 |
| 20 | 12.5 | 75 | 42 | 68.8 | 105 | 25.5 |
| 22 | 12.5 | 75 | 42 | 68.8 | 105 | 25.5 |
| 25 | 16.5 | 75 | 48 | 68.8 | ∞ | 25.5 |
| 30 | 16.5 | 75 | 55 | 68.8 | ∞ | 25.5 |
| 32 | 16.5 | 75 | 80 | 68.8 | ∞ | 25.5 |
| 25.4 (1″) | 16.5 | 75 | 48 | 68.8 | ∞ | 25.5 |
| VDI20 | 16.5 | 87.5 | 40 | 68.8 | 119.8 | 38 |
| VDI25 | 14.2 | 83.8 | 48 | 75.8 | 122.8 | 34.3 |
| VDI30 | 16.5 | 90.8 | 55 | – | 136.8 | 41.3 |
| VDI40 | 16.5 | 90.8 | 63 | – | 136.8 | 41.3 |
