Technische Daten
| Gewicht Werkzeug mit Rollen | 1 kg |
| Arbeitsbereich Ø | Ø 6 – 10 mm |
| Max. Steigung | 1,5 mm |

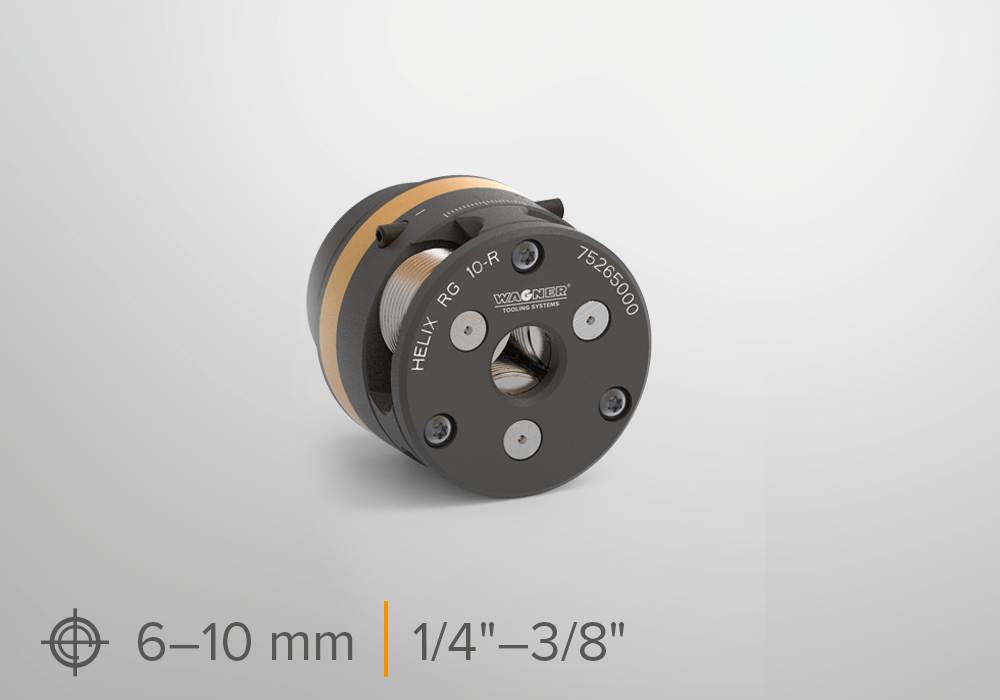

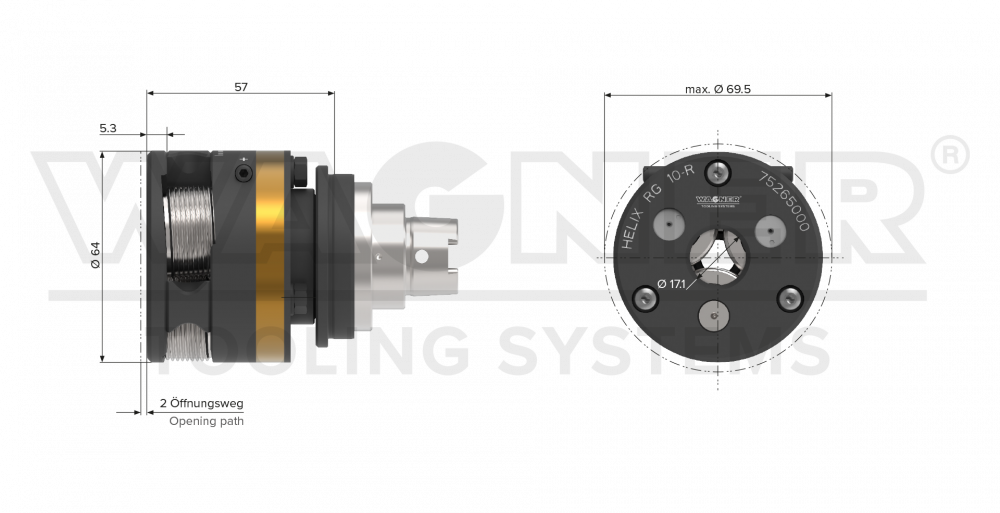

HELIX Axial-Rollsystem RG10-R / FG10-R
HELIX 10: Gewindeabmessung
| Metrisches ISO-Gewinde DIN 13 | Helix RG10-S / RG10-R | Helix FG10-S / FG10-R |
| M6 × 1 | X | |
| M6 × 0,75 | X | X |
| M6 × 0,5 | X | |
| M7 × 1 | X | |
| M7 × 0,75 | X | X |
| M7 × 0,5 | X | |
| M8 × 1,25 | X | |
| M8 ×1 | X | X |
| M8 × 0,75 | X | |
| M8 × 0,5 | X | |
| M9 × 1,25 | X | |
| M9 × 1 | X | X |
| M9 × 0,75 | X | |
| M9 × 0,5 | X | |
| M10 × 1,5 | X | |
| M10 × 1,25 | X | X |
| M10 × 1 | X | X |
| M10 × 0,75 | X | |
| M10 × 0,5 | X |
Hinweis: Dezimalstellen werden hier mit Komma gekennzeichnet. Das deutsche „0,08 mm“ entspricht also dem englischen „0.08 mm“.
Unified-Gewinde
| Unified-Gewinde | Helix RG10-S / RG10-R | Helix FG10-S / FG10-R |
| 1/4-20UNC | X | |
| 1/4-28UNF | X | |
| 1/4-32UNEF | X | X |
| 5/16-20UN | X | |
| 5/16-18UNC | X | |
| 5/16-24UNF | X | |
| 5/16-28UN | X | X |
| 5/16-32UNEF | X | X |
| 5/16-36UNS | X | |
| 3/8−16UNC | X | |
| 3/8-20UN | X | |
| 3/8-24UNF | X | X |
| 3/8-28UN | X | |
| 3/8-32UNEF | X | |
| 3/8-36UNS | X | |
| 1/16NPT | X | X |
| 1/8NPT | X |
Whitworth-Gewinde B. S. 84
| Whitworth-Gewinde B. S. 84 | Helix RG10-S / RG10-R | Helix FG10-S / FG10-R |
| 1/4″-20BSW | X | |
| 1/4″-26BSF | X | |
| 1/4″-32BSFS | X | X |
| 9/32″-26BSF | X | |
| 5/16″-18BSW | X | |
| 5/16″-22BSF | X | |
| 5/16″-26BSFS | X | X |
| 5/16″-32BSFS | X | X |
| 3/8″-16BSW | X | |
| 3/8″-20BSF | X | |
| 3/8″-26BSFS | X | X |
| 3/8″-32BSFS | X |
Whitworth-Rohrgewinde, kegelig: DIN EN 10226 / DIN 2999 / DIN 3858
| Whitworth-Rohrgewinde, kegelig: DIN EN 10226 / DIN 2999 / DIN 3858 | Helix RG10-S / RG10-R | Helix FG10-S / FG10-R |
| R1/16 | X | X |
| R1/8 | X |
Whitworth-Rohrgewinde: DIN EN ISO 228
| Whitworth-Rohrgewinde: DIN EN ISO 228 | Helix RG10-S / RG10-R | Helix FG10-S / FG10-R |
| G1/16 | X | X |
| G1/8 | X |
