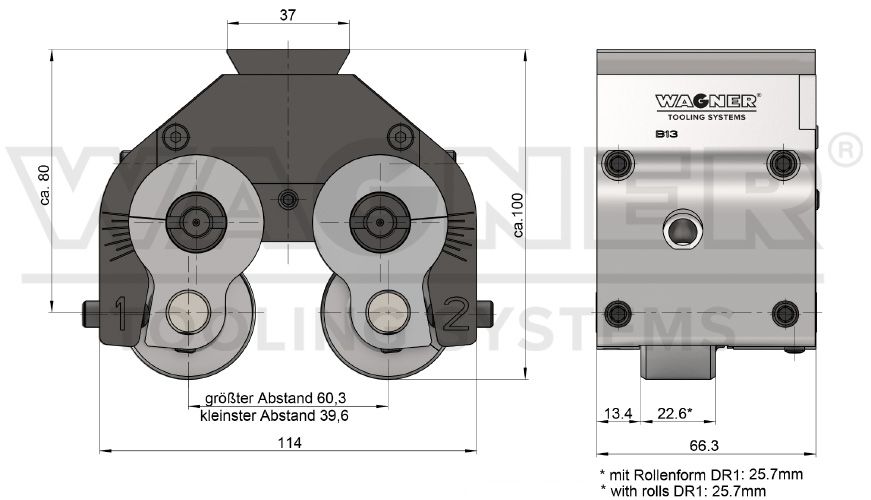

Tangential rolling system B13
| Weight of tool with rolls | 3.8 kg |
|---|---|
| Weight of adapter | approx. 2 kg |
| Max. feed force | 4900 N |
| Standard thread Ø (mm/inch) | 3–22 / 0.12–0.866 |
| Fine thread Ø (mm/inch) | 3–30 / 0.12–1.181 |
| Max. thread length (minus 2 x thread pitch) (mm/inch) | 25.7 / 1.01 |
| Clearance from roll to tool edge (mm/inch) | 13.4 / 0.53 |
| Thread length | 12 mm |
|---|---|
| Material | 1.7228 |
| Rolling speed | 40 m/min |
| Spindle speed | 800 r.p.m. |
| Feed | 0.20 mm |
| Lubrication | Oil |
| Machining time | 1.6 sec. |
| Please note that this information represents standard values which must be adapted to the individual cases. | |
| Rolling speed | 30–80 m/min |
| Lubrication | Emulsion or oil: filtration of the lubricant (<40 µm) can improve the surface quality and the tool life |
| - Adapter machine-specific |
|---|
| - Micrometer setting gauge (standard) |
| - Thread specific gauge (optional) |
Micrometer setting gauge
