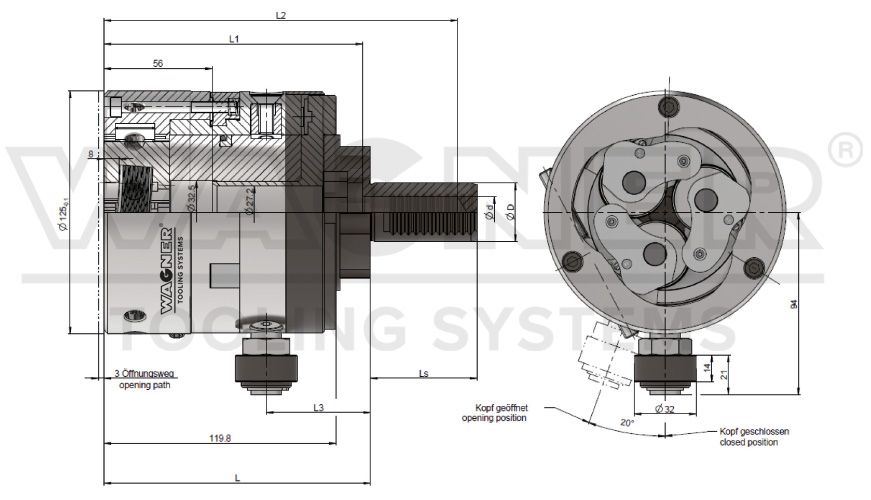

Axial rolling systems with roll holders, stationary
| Weight | 10.5 kg |
|---|---|
| Working range Ø (mm/inch) | 5–36 / 0.197–1.417 |
| Pitch max. (mm/inch) | 3 / 8 t.p.i. |
| Shank-Ø D (mm/inch) |
d (mm) | L (mm) | LS (mm) | L1 (mm) | L2 (mm) | L3 (mm) |
|---|---|---|---|---|---|---|
| 25 | 18.2 | 121.8 | 65 | ∞ | - | 37.8 |
| 25.4 / 1" | 18.2 | 121.8 | 65 | ∞ | - | 37.8 |
| 30 | 23.5 | 121.8 | 80 | ∞ | - | 37.8 |
| 31.75 / 1 1/4" | 23.5 | 121.8 | 80 | ∞ | - | 37.8 |
| 32 | 23.5 | 121.8 | 80 | ∞ | - | 37.8 |
| 36 | 23.5 | 121.8 | 100 | 203.8 | - | 37.8 |
| 38.1 / 1 1/2" | 23.5 | 121.8 | 88 | ∞ | - | 37.8 |
| 40 | 27.2 | 121.8 | 80 | 183.8 | - | 37.8 |
| 50 | 27.2 | 121.8 | 120 | ∞ | - | 37.8 |
| 50,8 / 2" | 27.2 | 121.8 | 65 | ∞ | - | 37.8 |
| 60 | 27.2 | 121.8 | 120 | ∞ | - | 37.8 |
| VDI 30 | 27.2 | 137.8 | 55 | 133.8 | 182.8 | 53.6 |
| VDI 40 | 27.2 | 137.8 | 63 | 133.8 | 182.8 | 53.6 |
| VDI 50 | 27.2 | 137.8 | 78 | 133.8 | 199.8 | 53.6 |
